Bott Rack in Workshop

Fitout By Sys Tim

Bott, Bott Runner Kit, Hack, How To

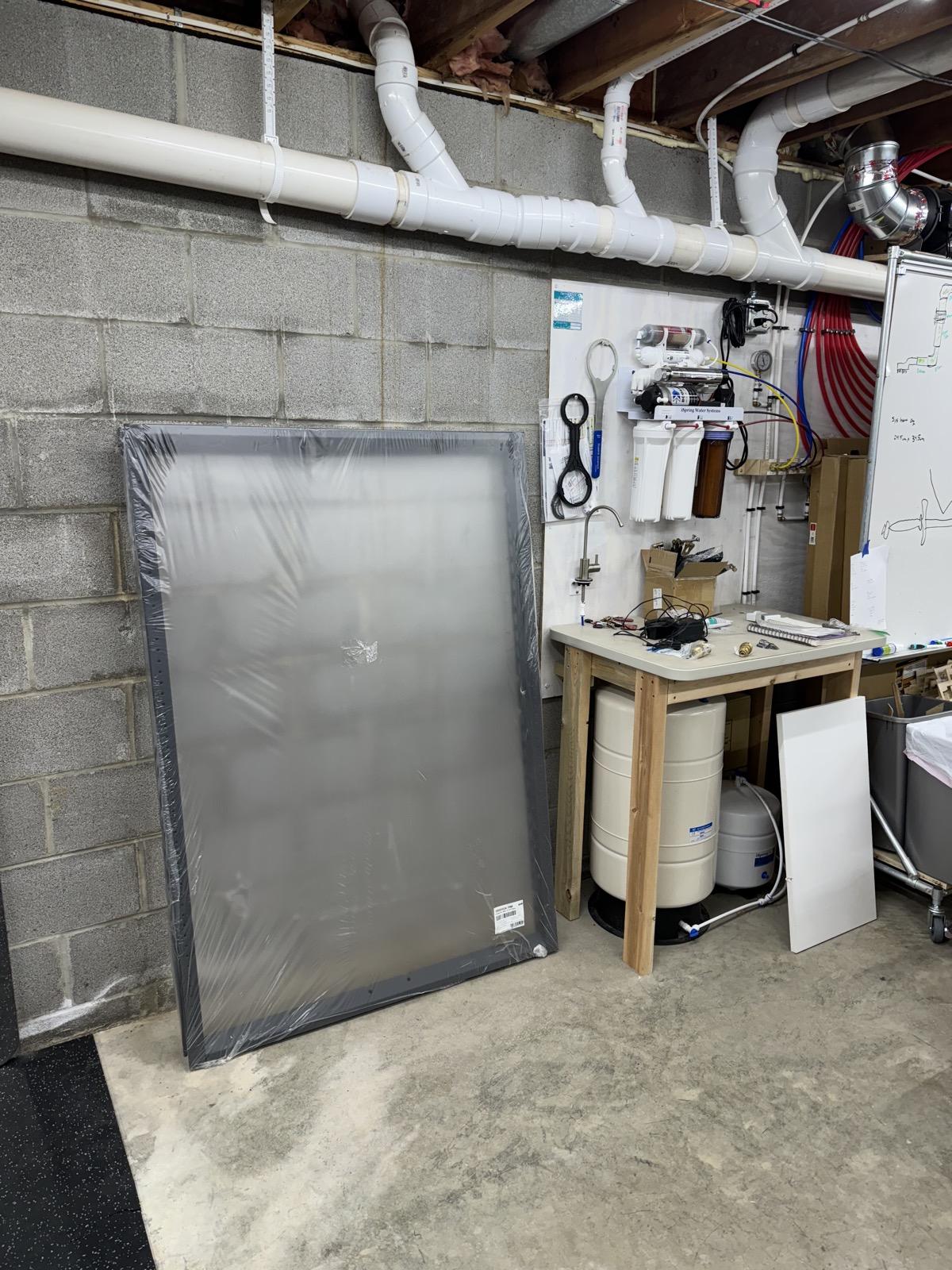

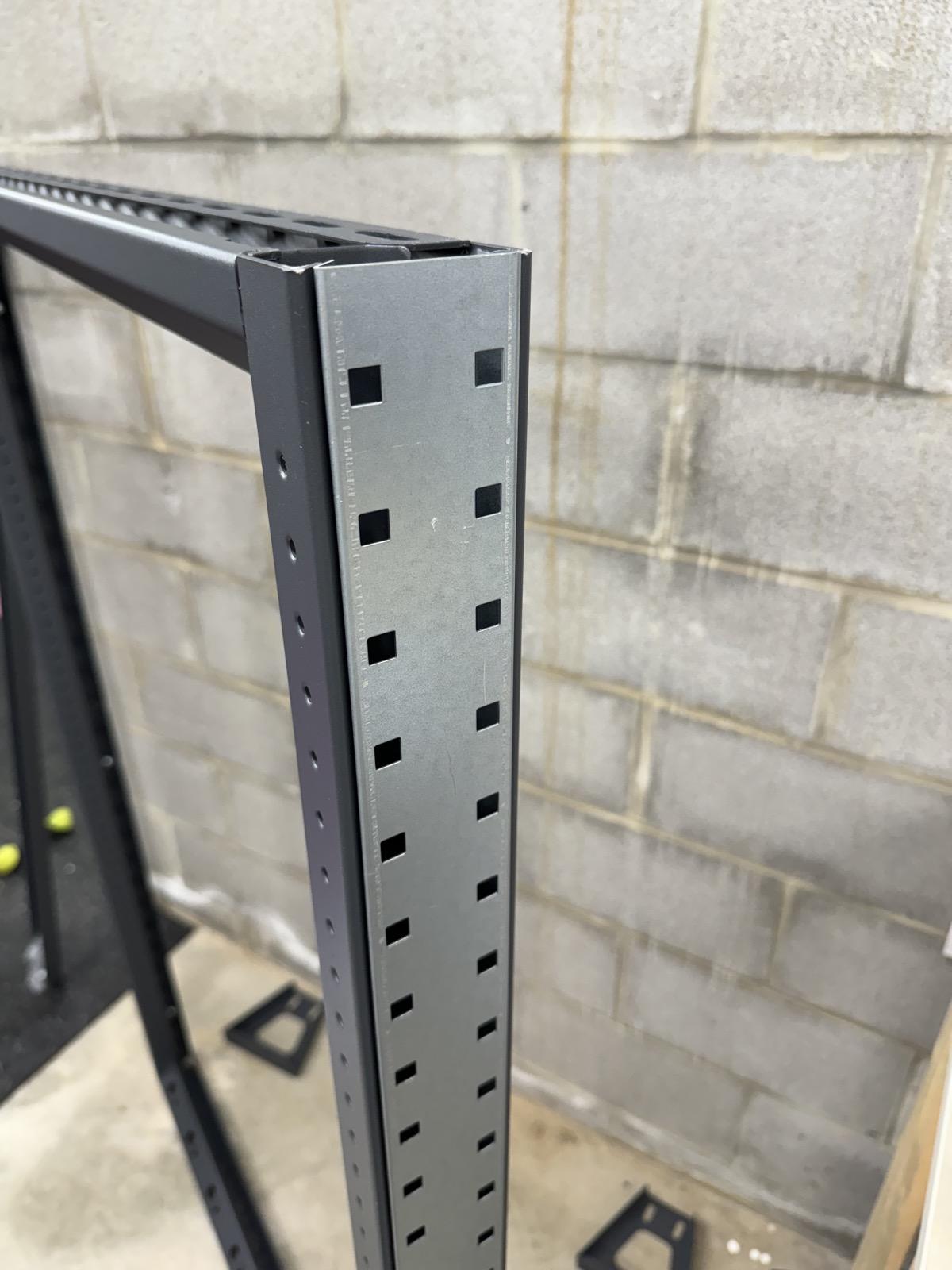

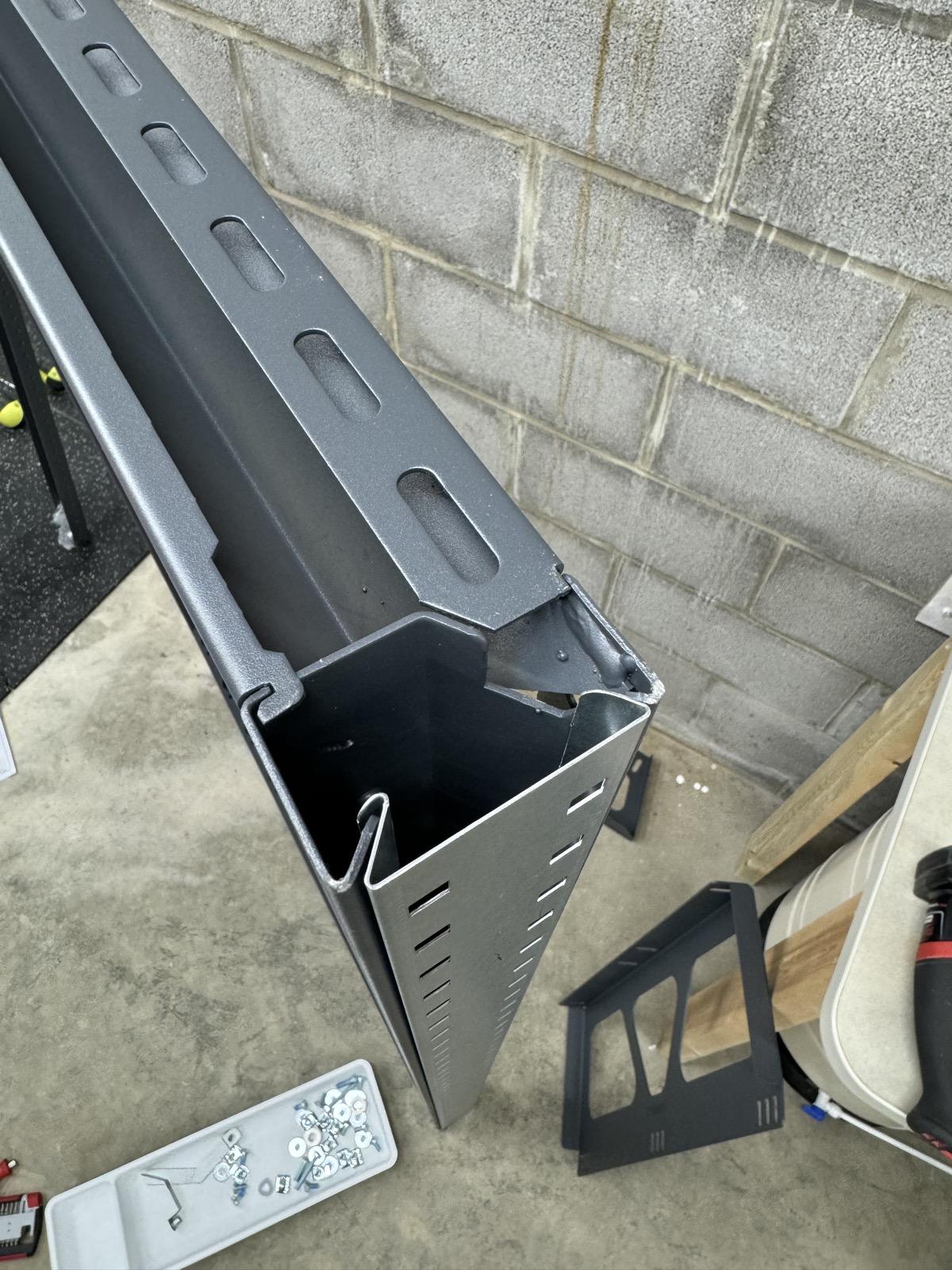

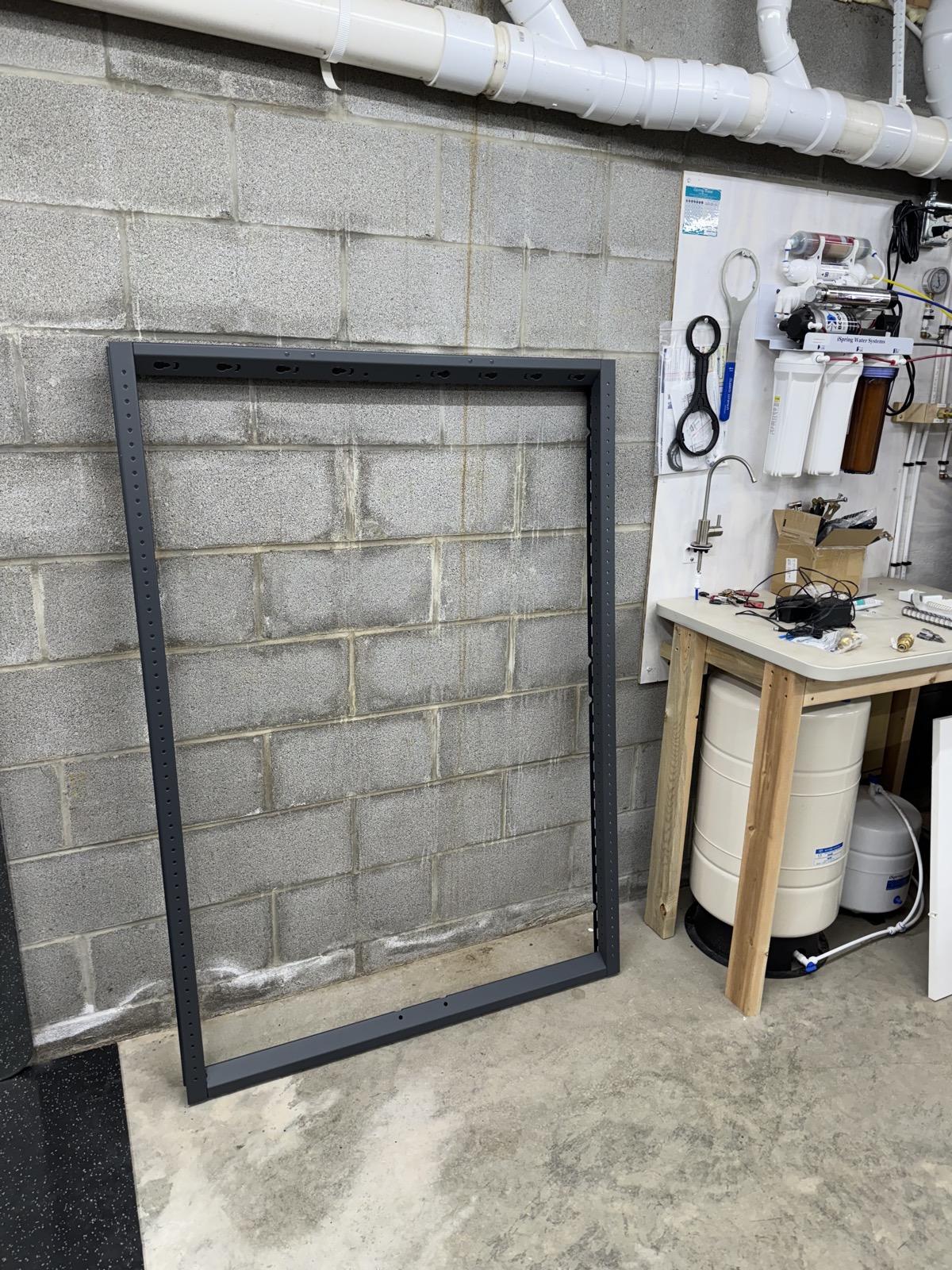

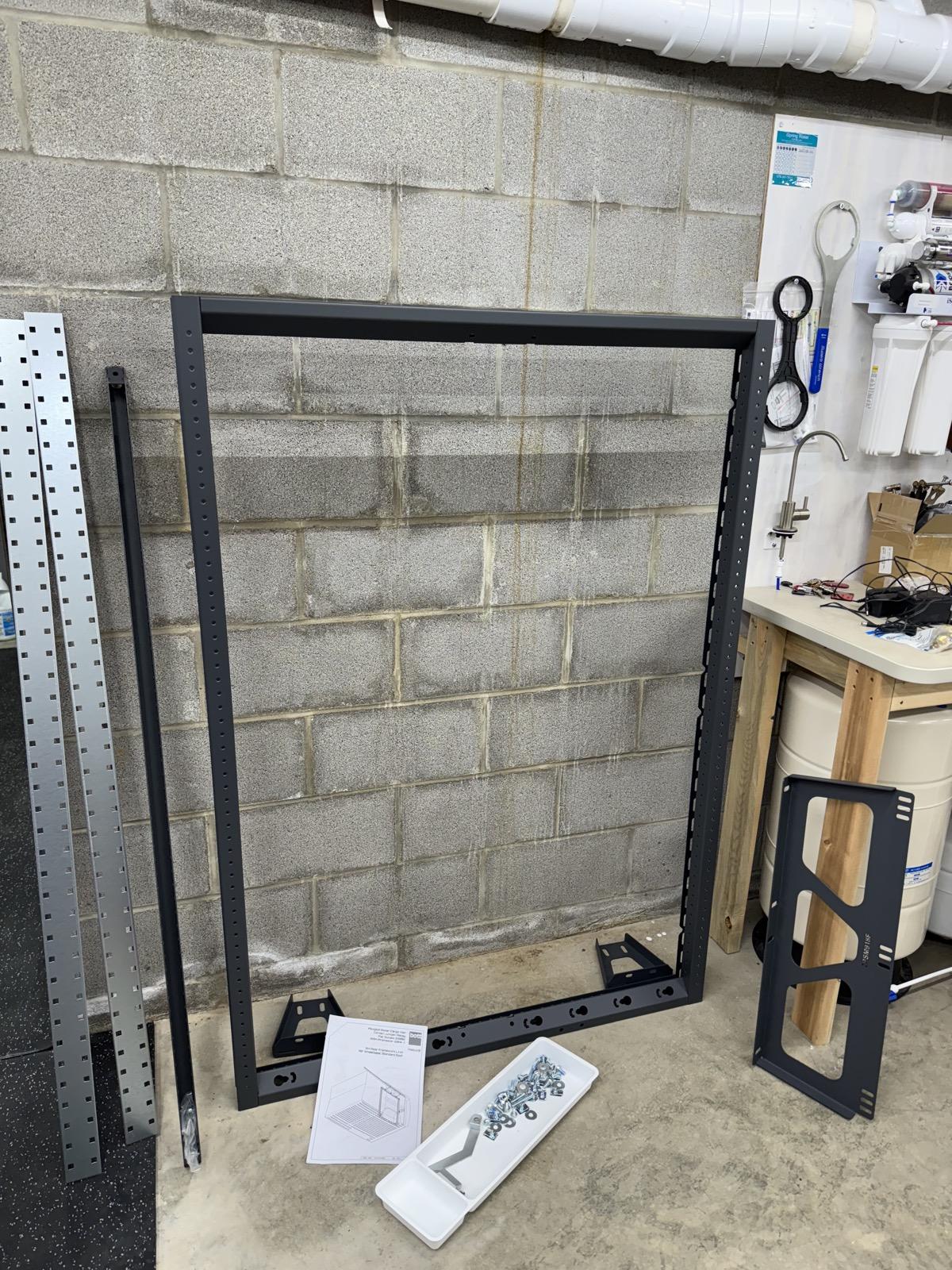

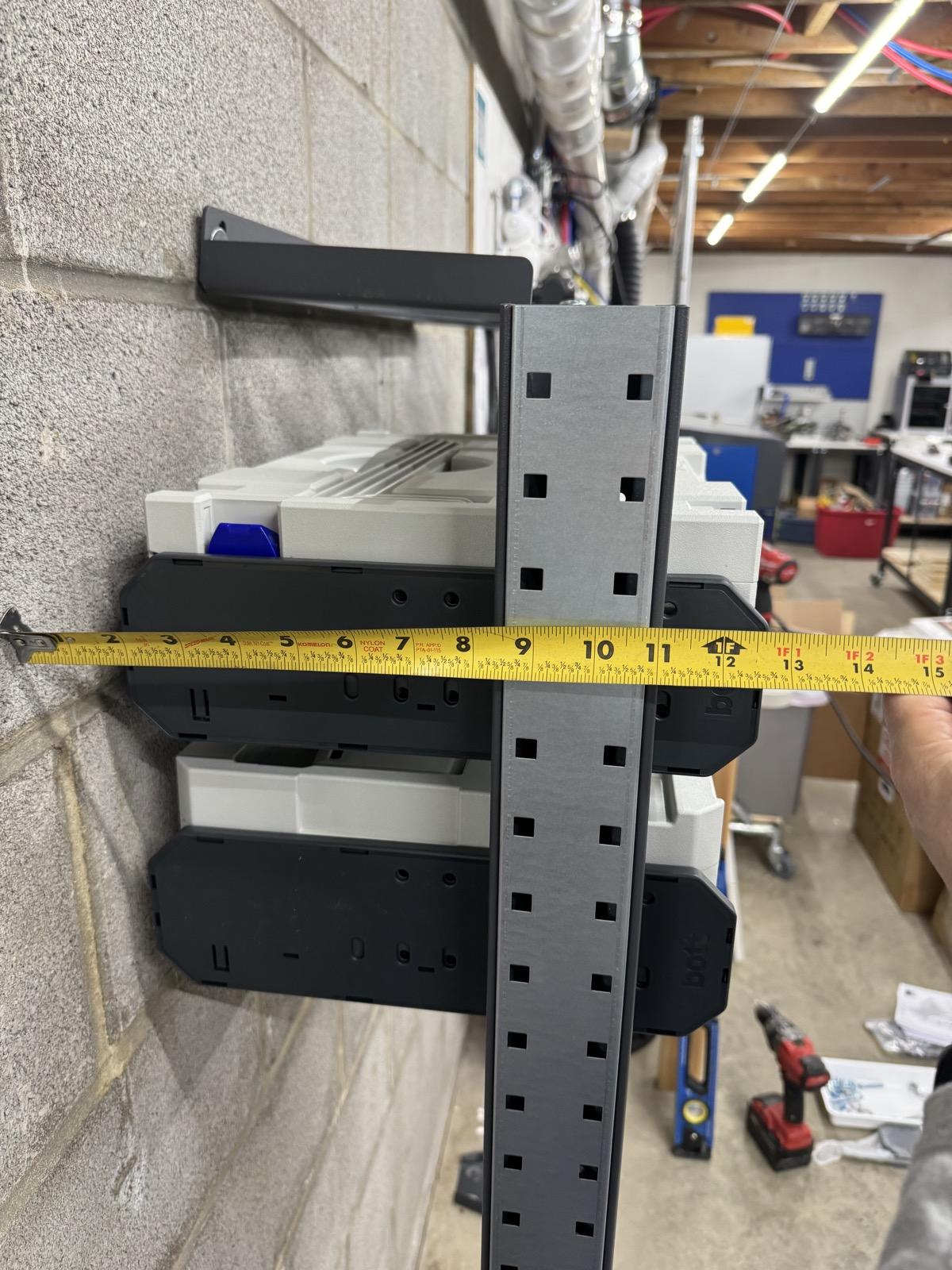

Need Systainer storage in your workshop? Here is a concept of taking a Bott SmartVan rack and adapting it to a workshop. This rack (19001034.19M) is 41 5/8” wide and 59 1/4” tall. The frame is welded steel construction and very robust. A single vertical divider (19002013.19M) is used, splitting this rack into one bay for Systainer M, T-Loc or Classic and one bay for Systainer3 L. There are wider and narrower racks available from Bott. Each end of the frame is fitted with a Bott Perf-o panel (19002003.51M).

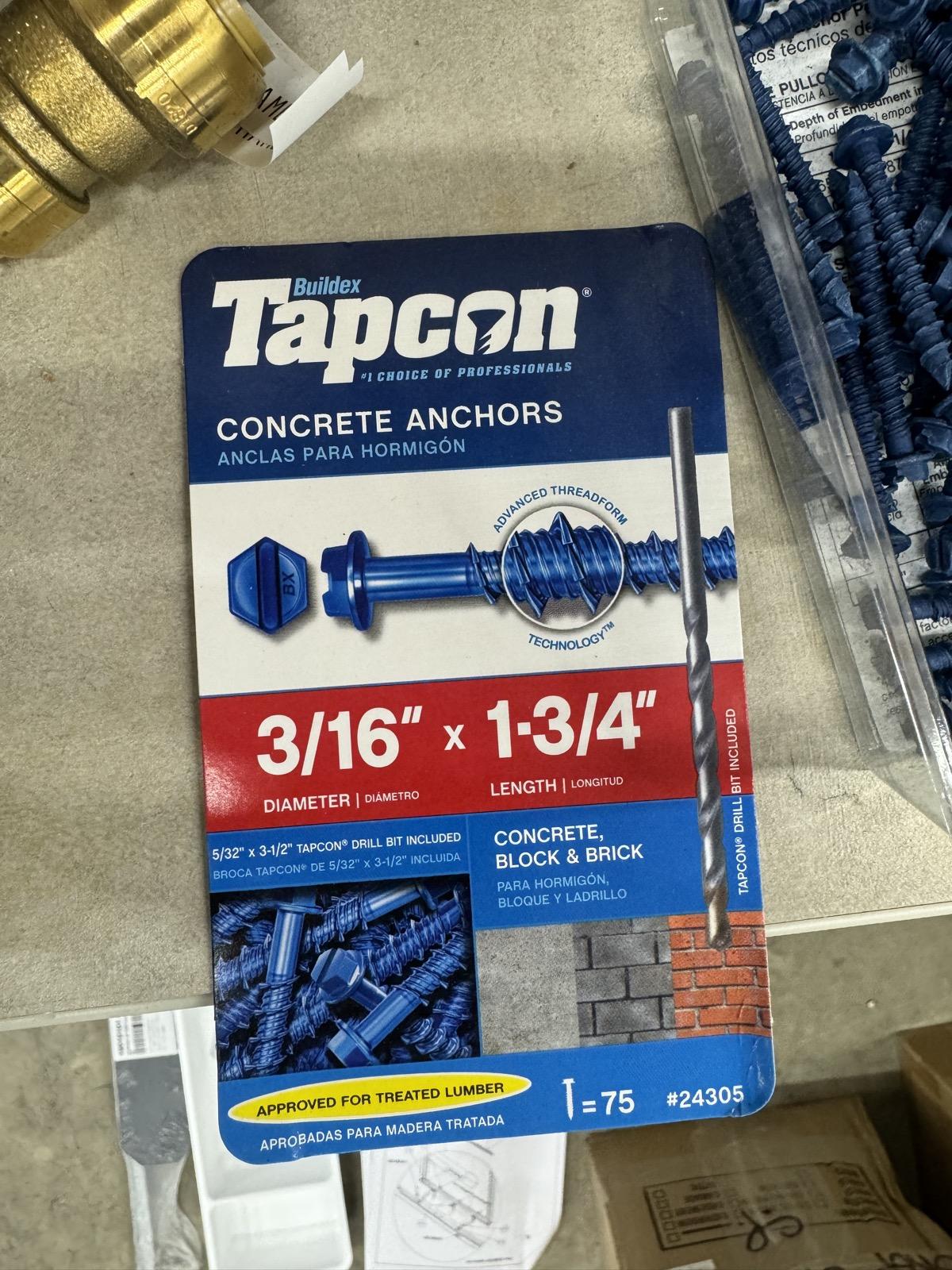

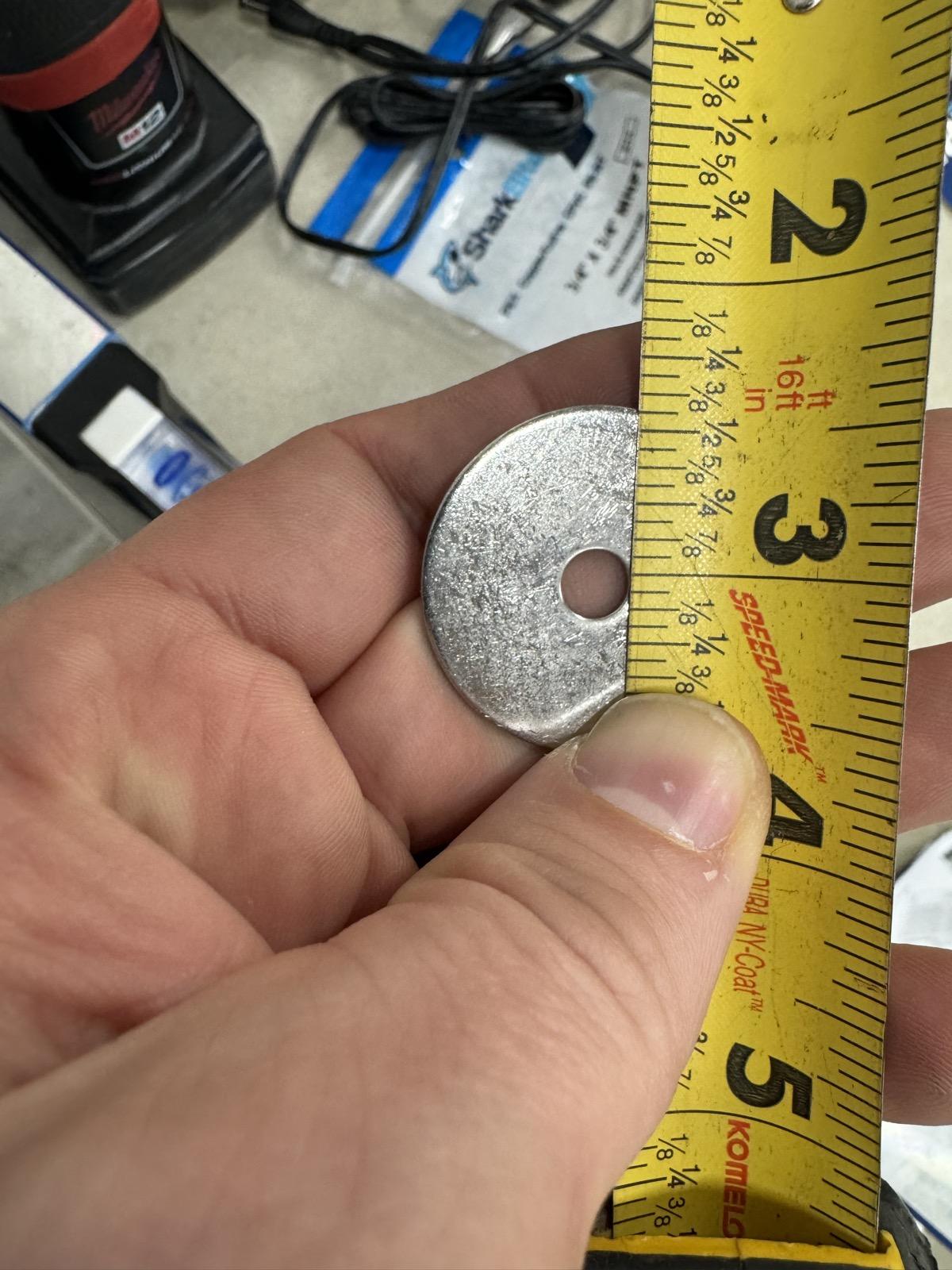

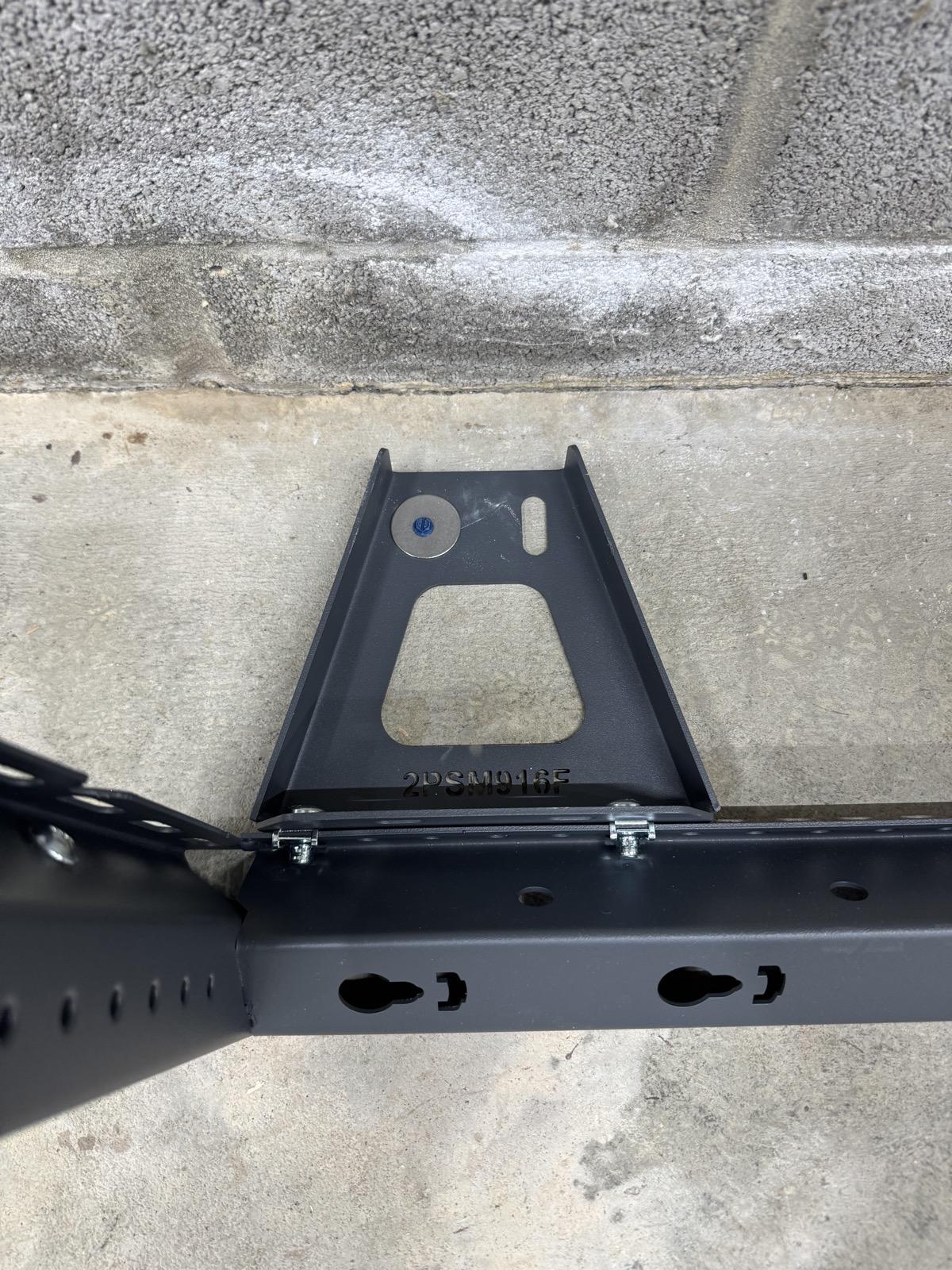

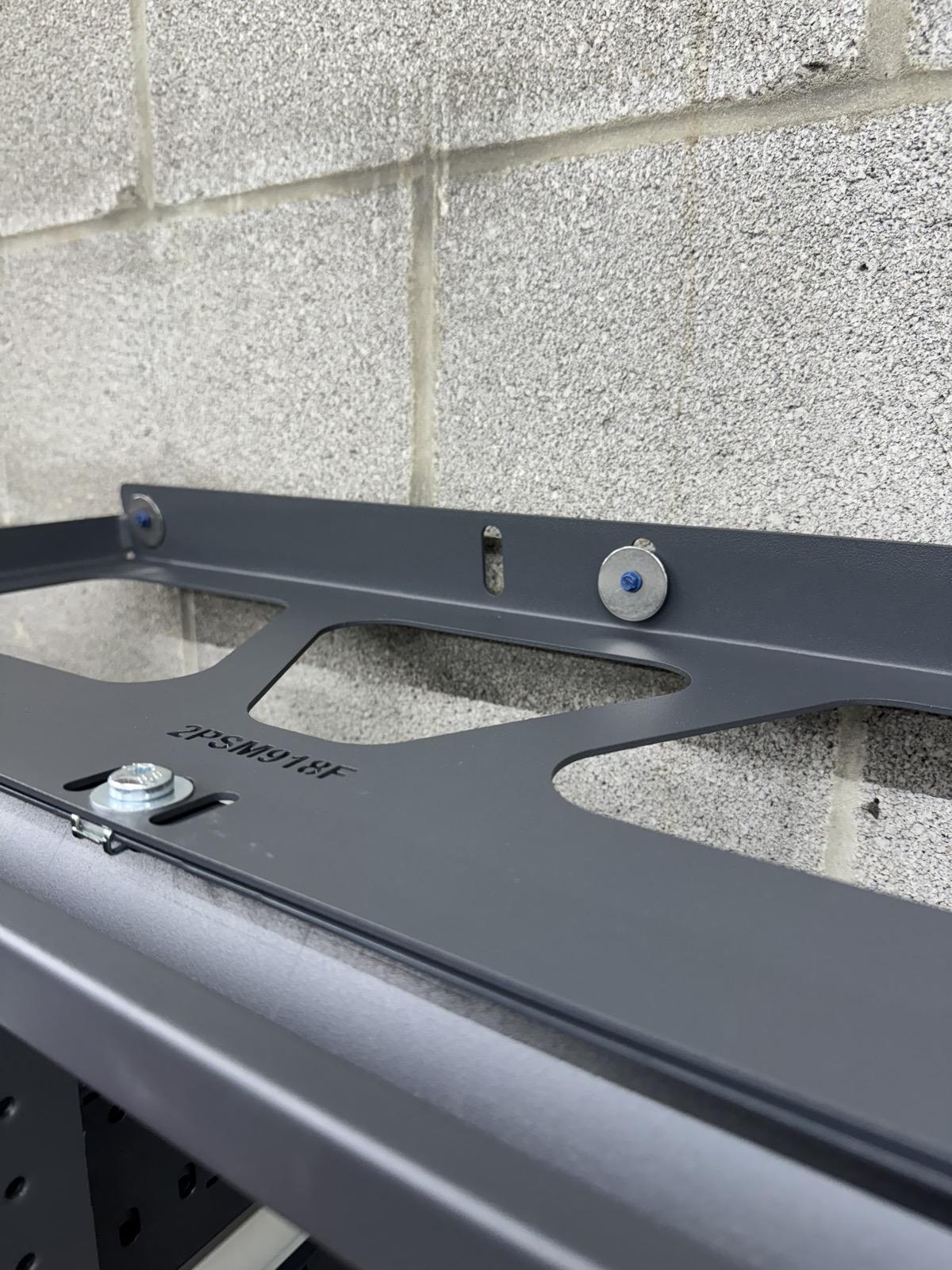

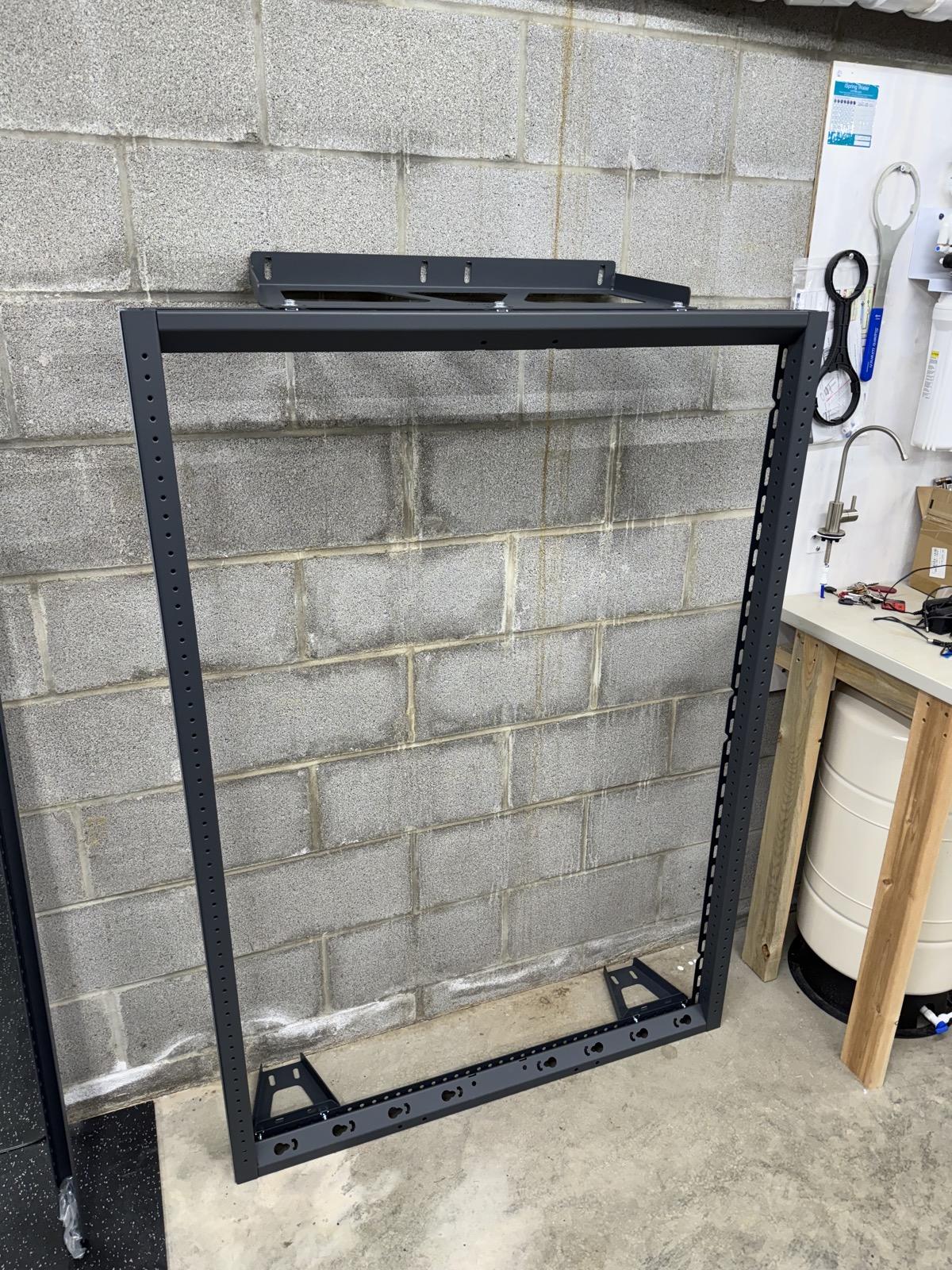

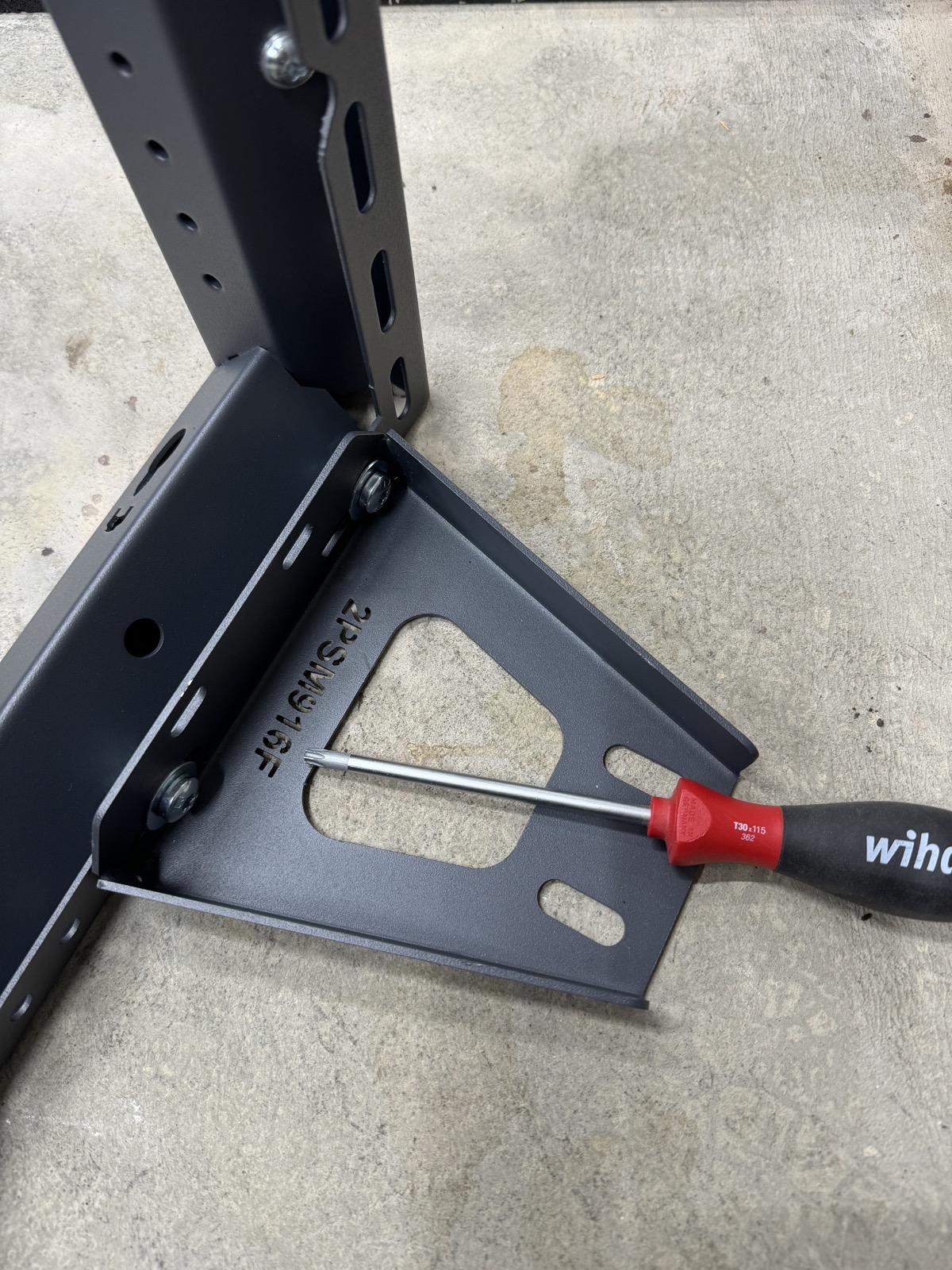

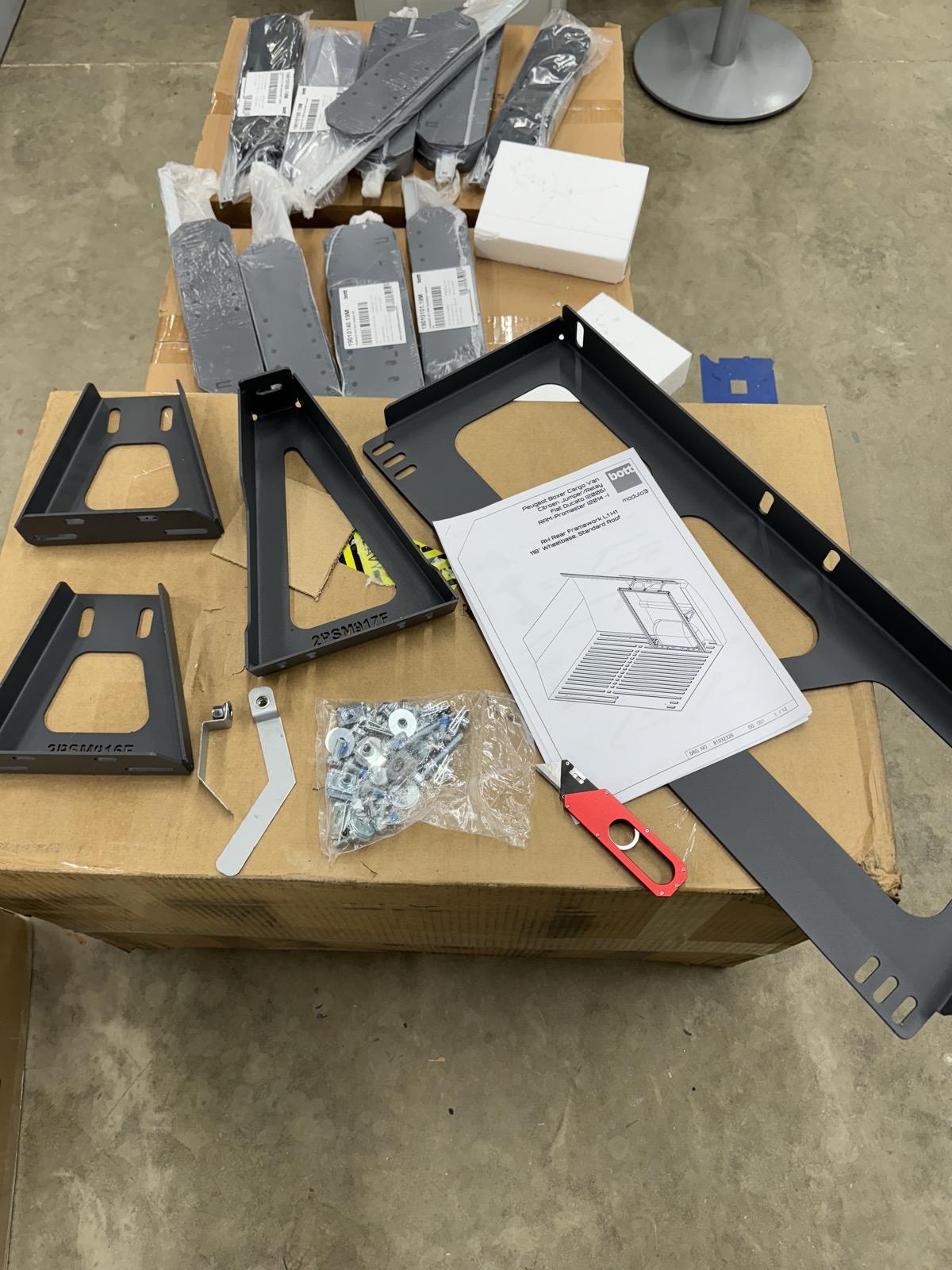

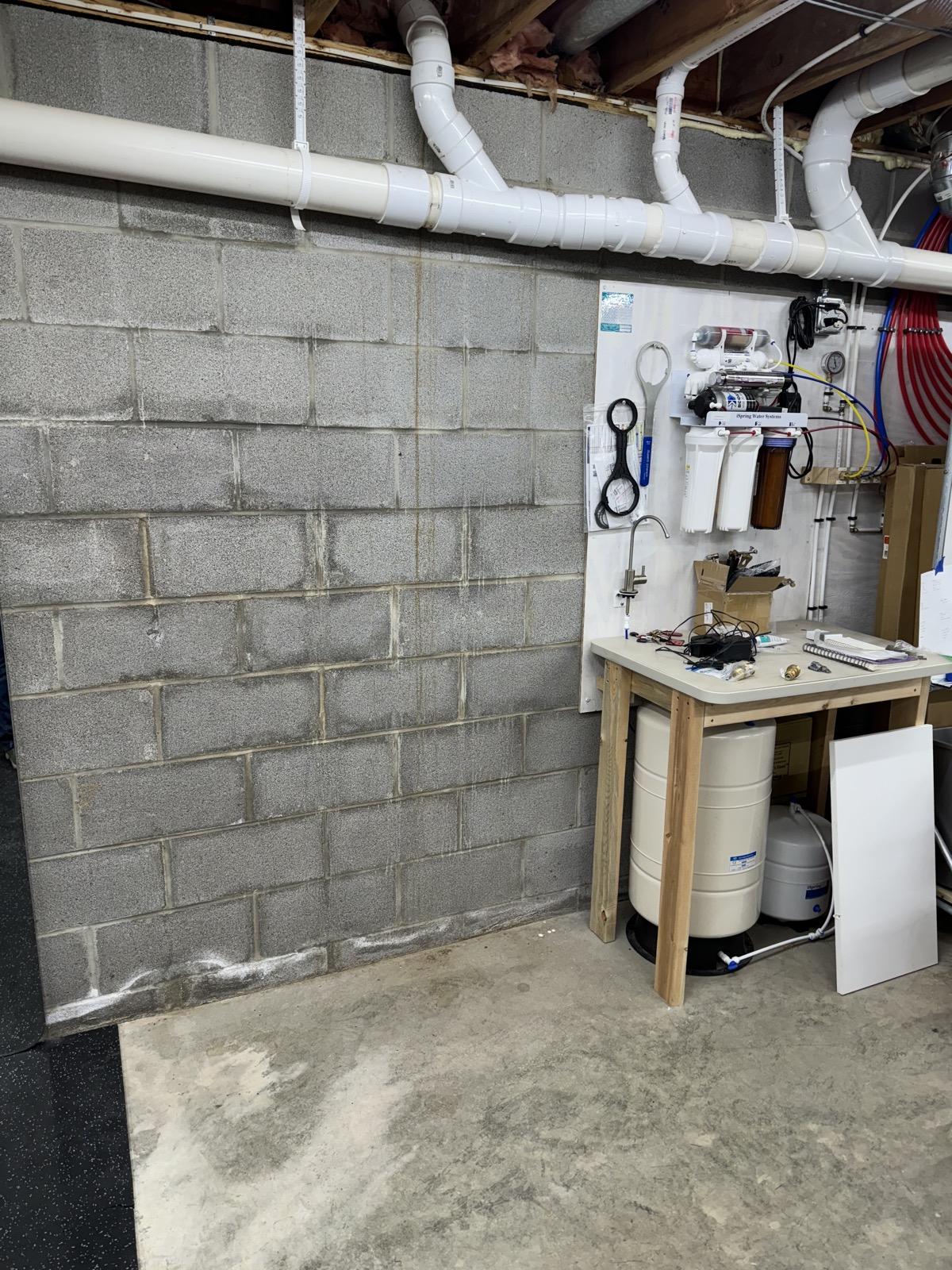

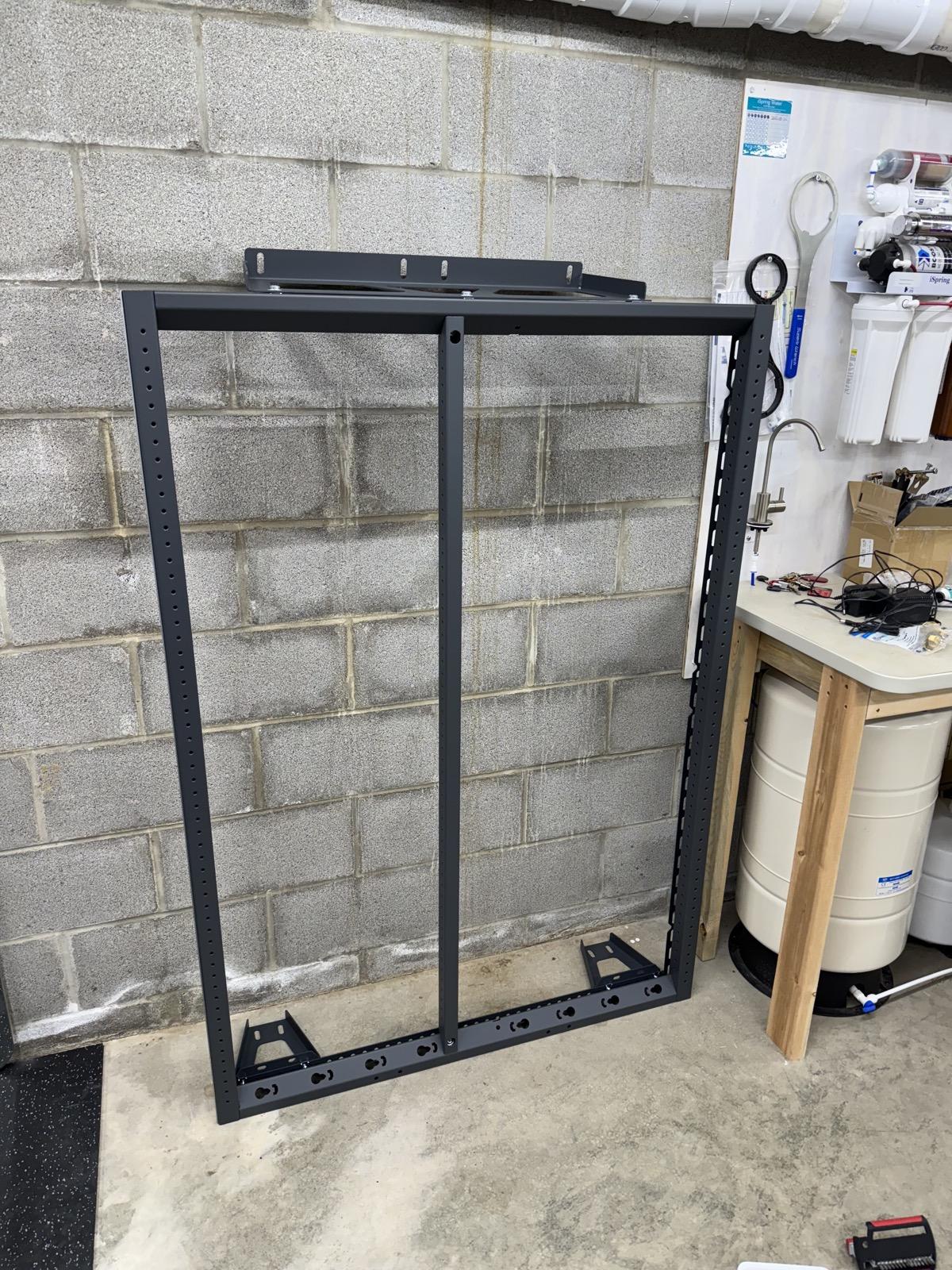

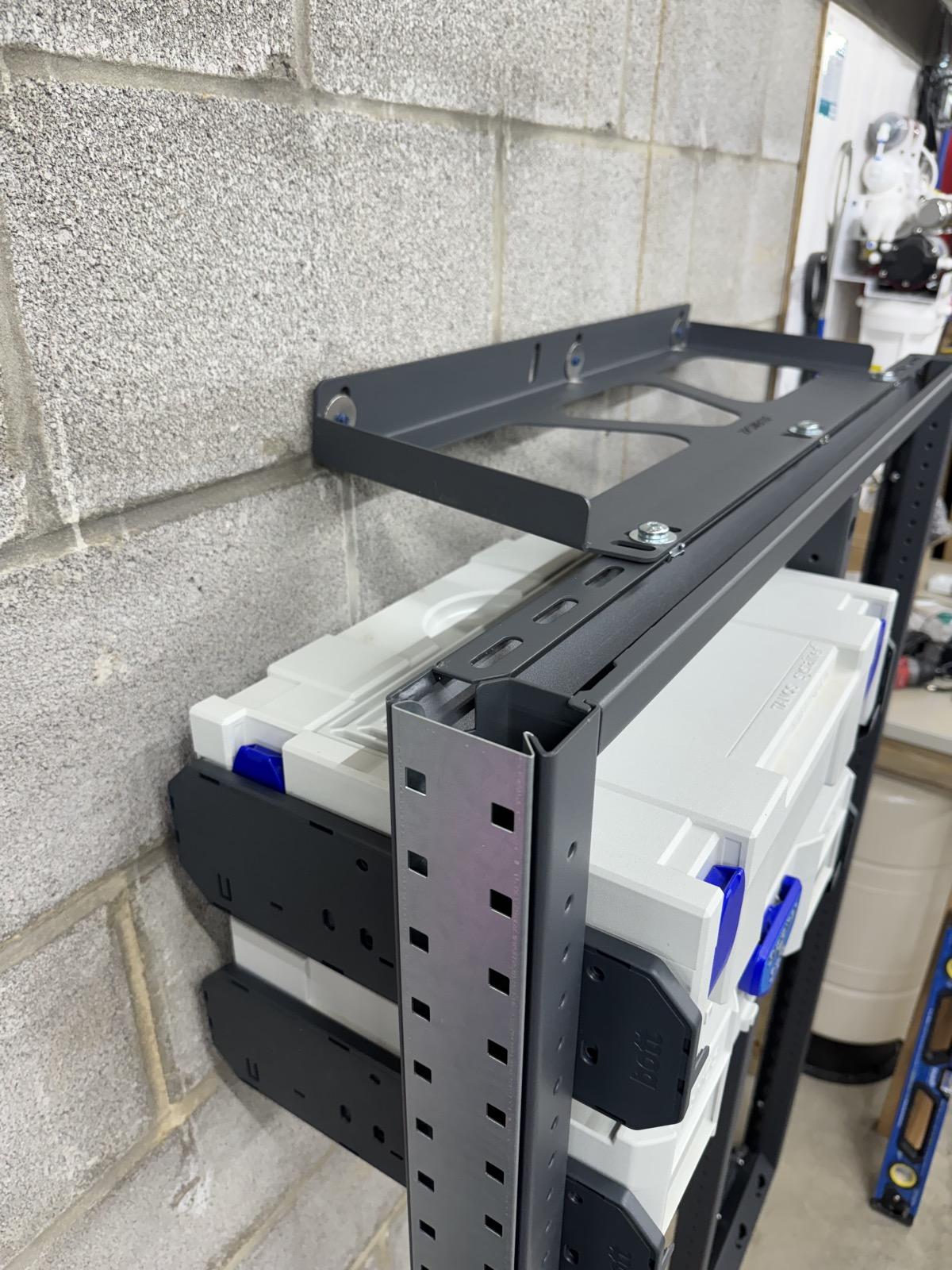

The frame is attached to a cinder block wall with Tapcon anchors and washers. The brackets shown here are the most generic of all their brackets (19015091.19V). The Bott SmartVan is a no drill solution for a variety of van, what this means is Bott makes unique brackets for each van fitout to align with the manufacture installed mount points. In our case we are making it up and can drill holes as we would like into the wall and floor.

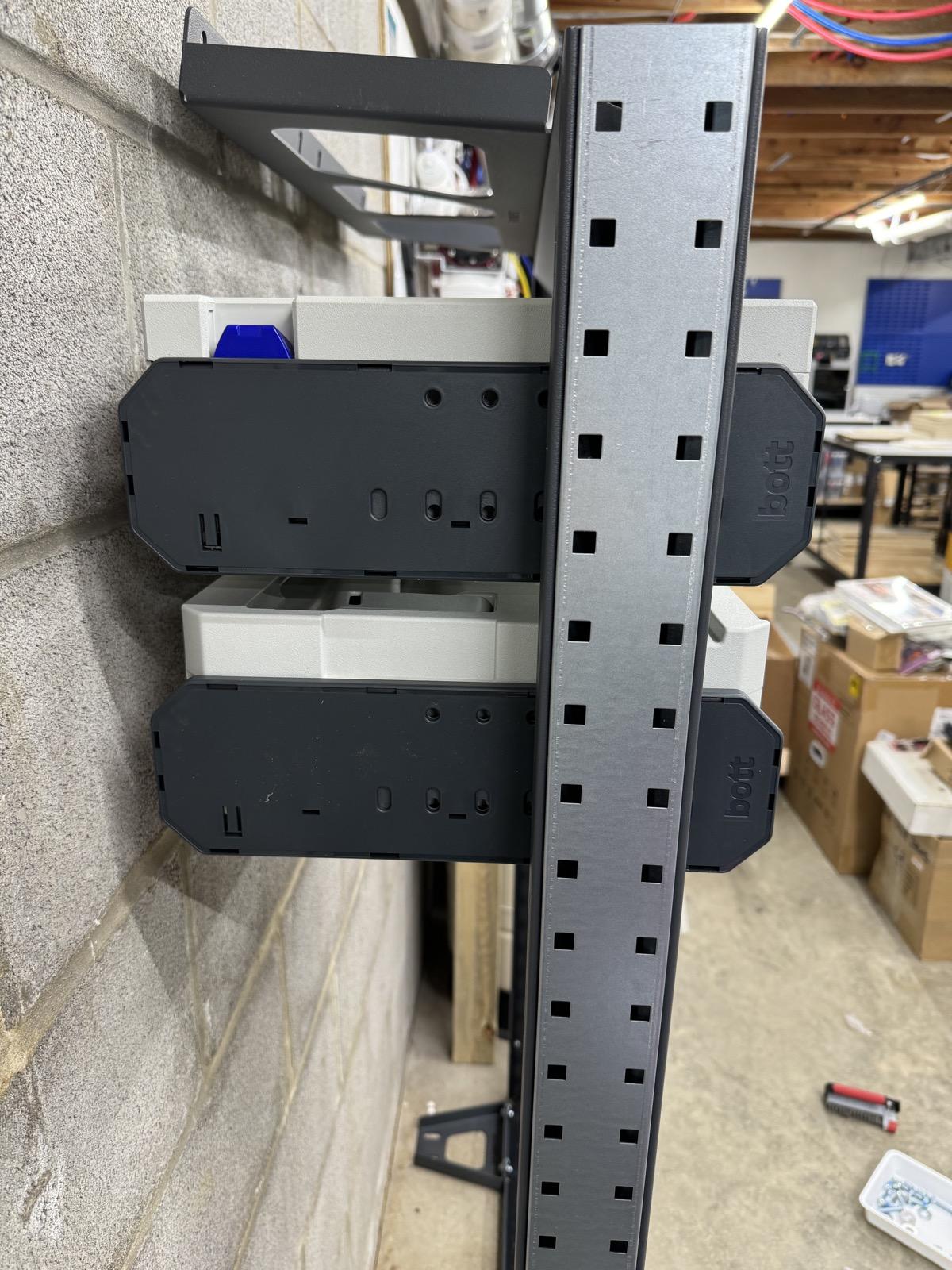

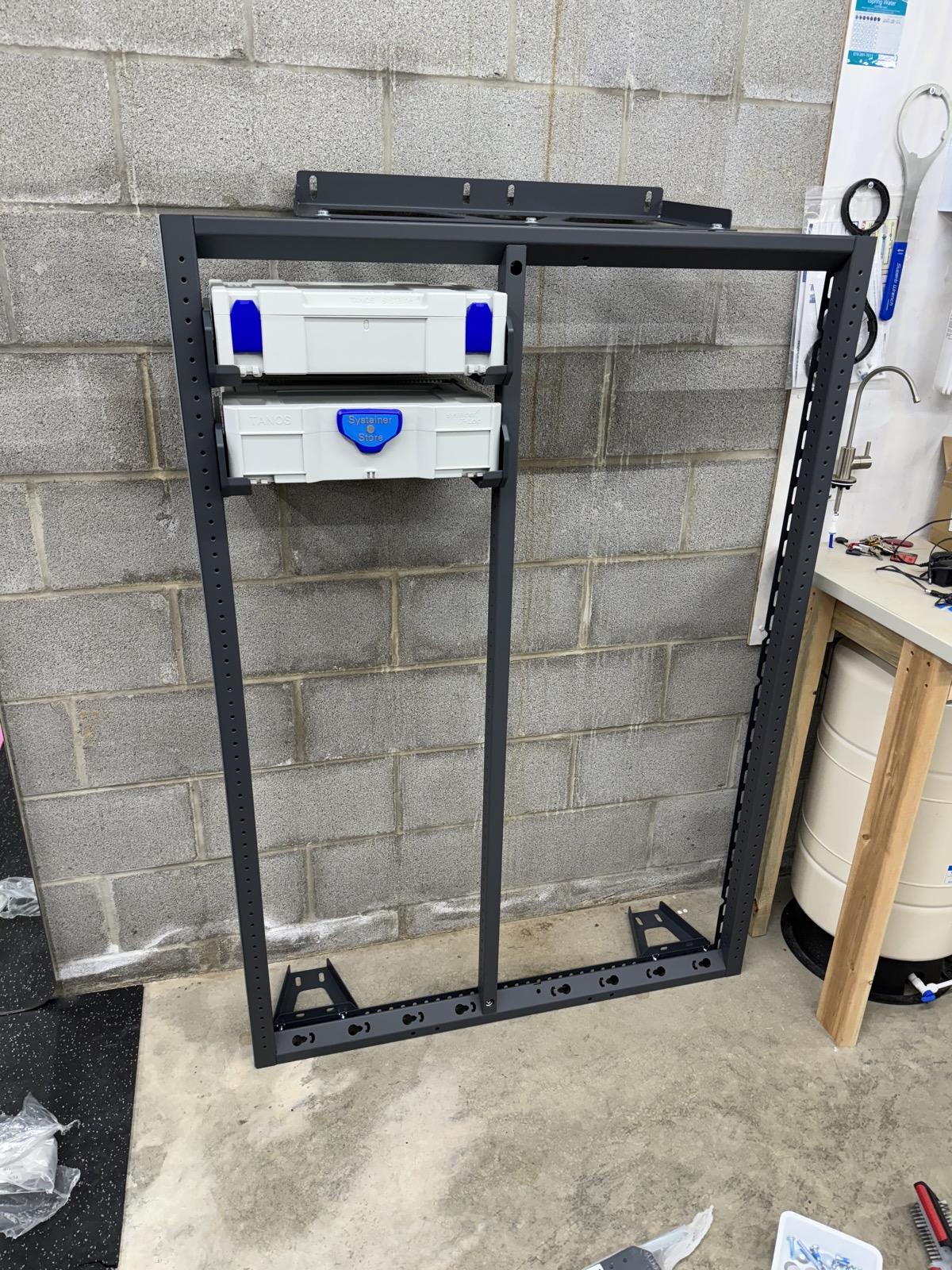

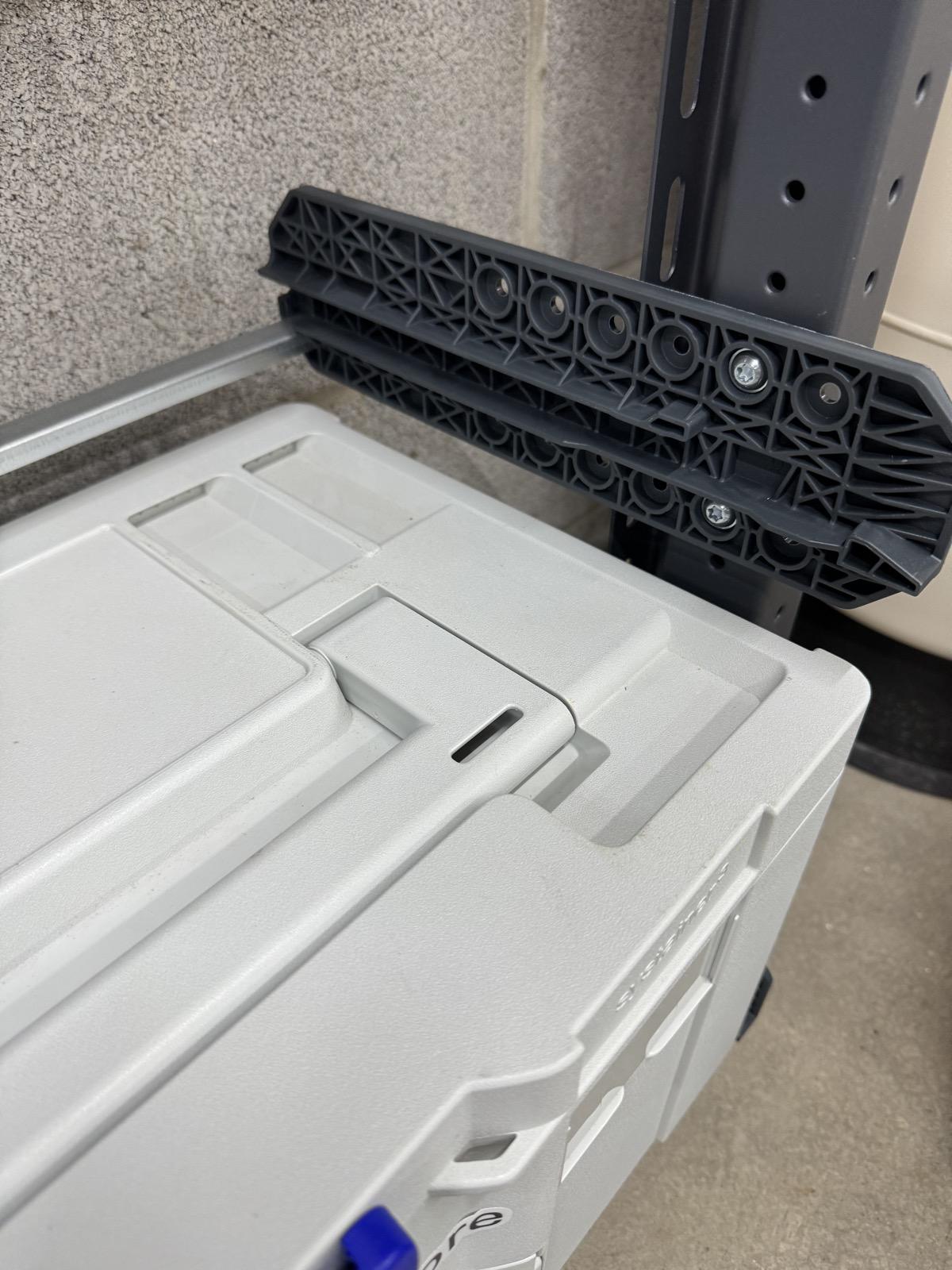

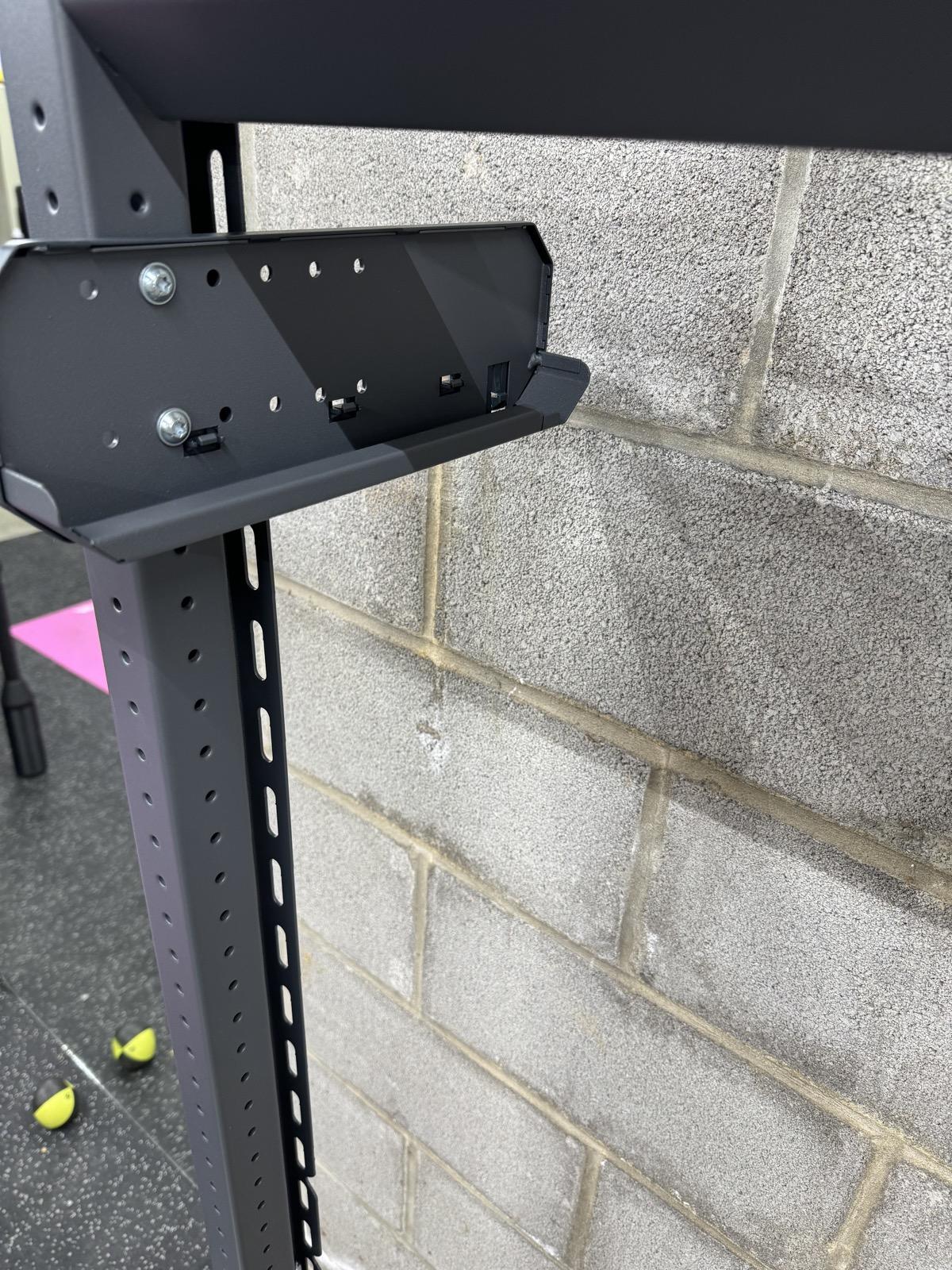

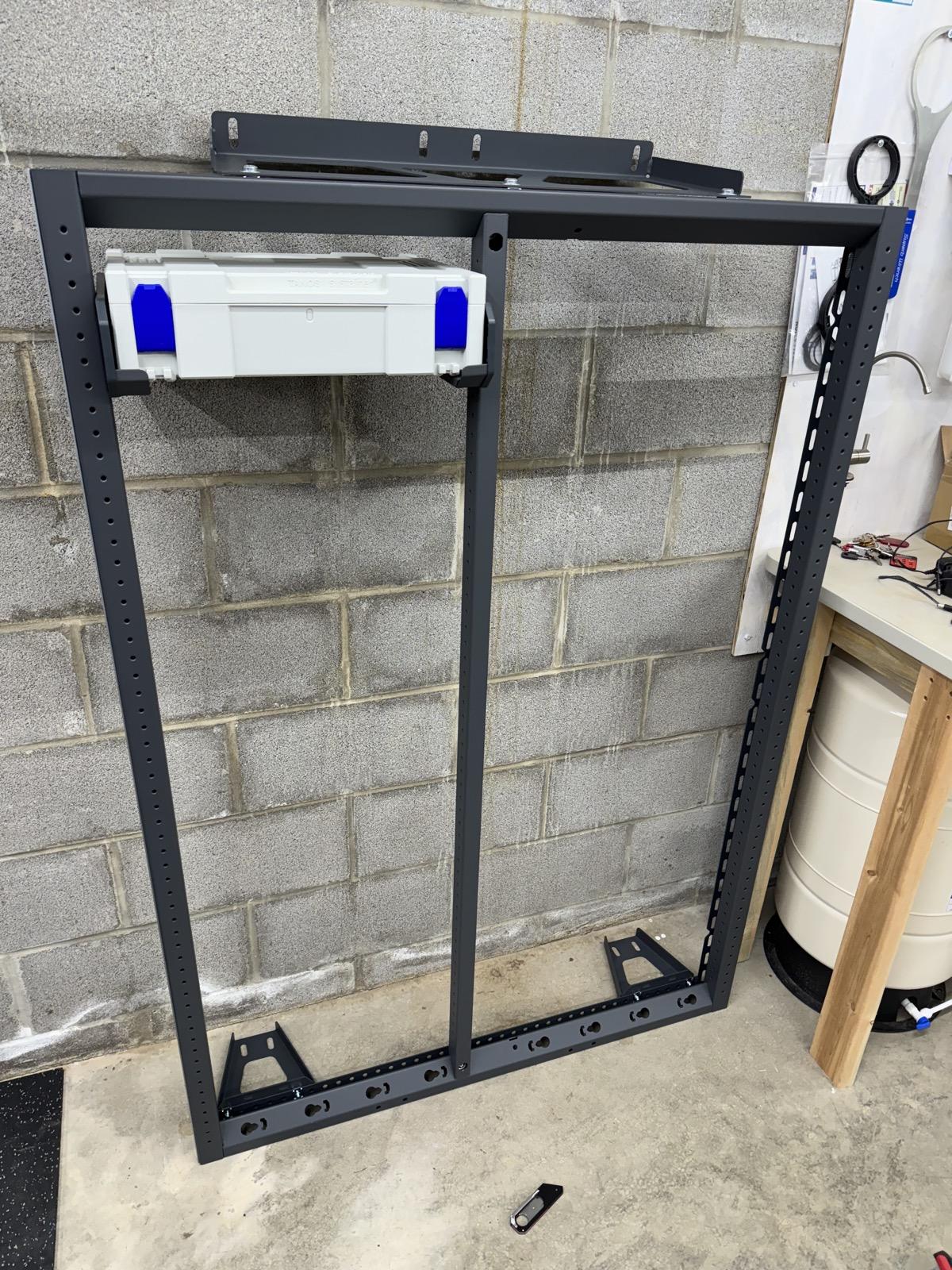

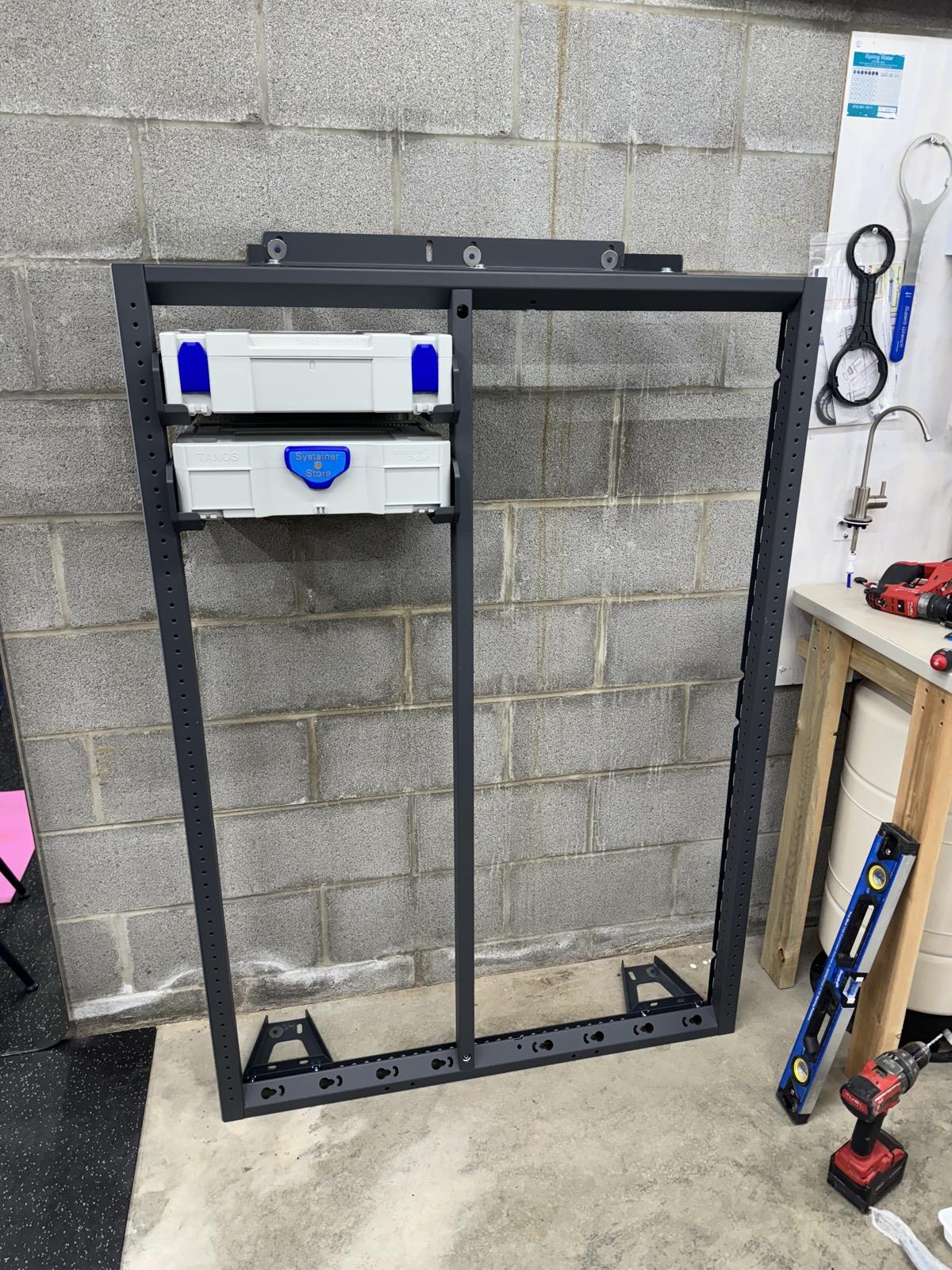

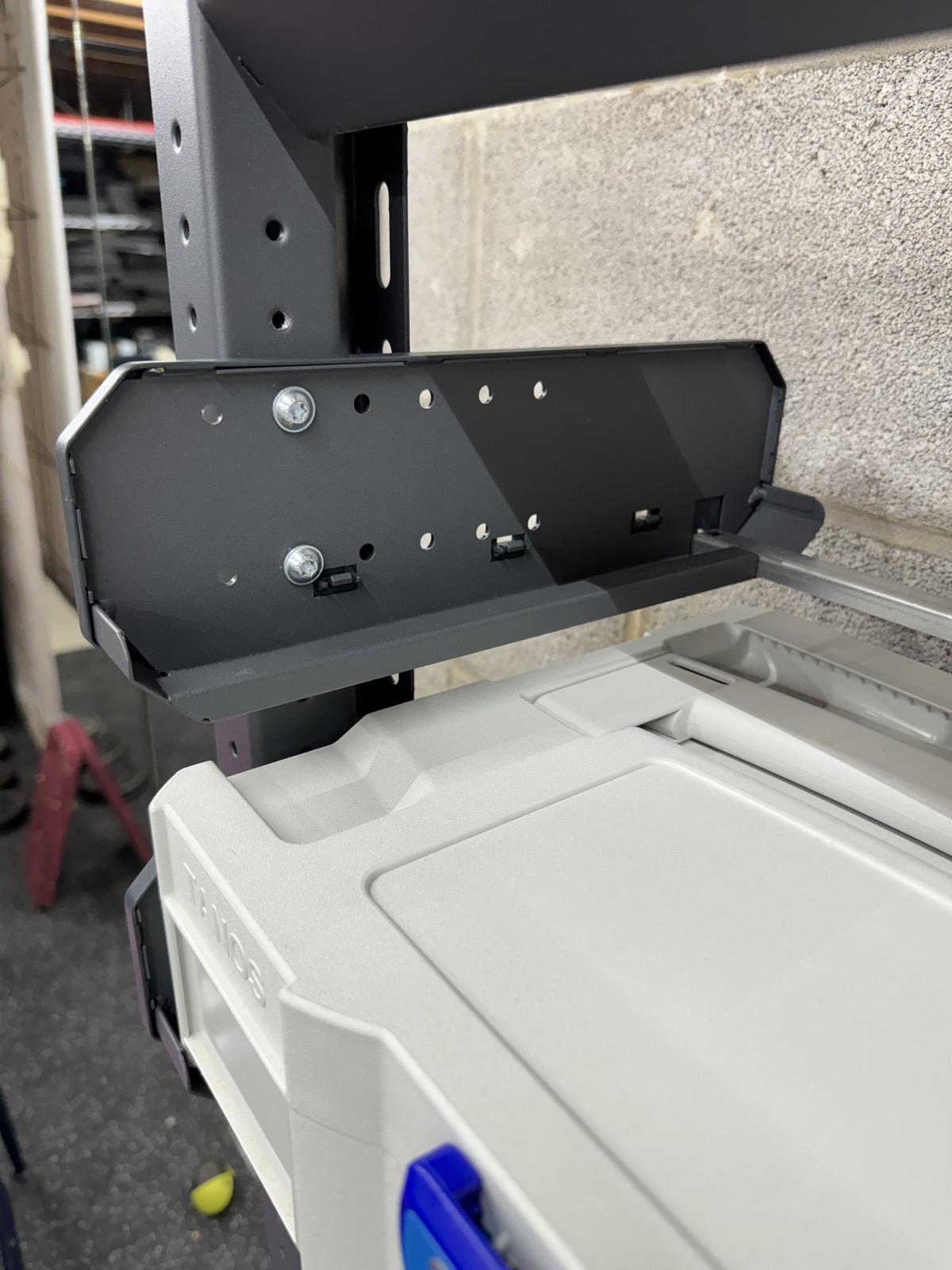

A minimal of tools are required for the install. Once the rack is in place, next to go in are the shelves and brackets. I used a shelf that works for the T-Loc and Classic (19010140.19M) as well as a runners for the Systainer3 M (19010100.19M) and L (19010101.19M).

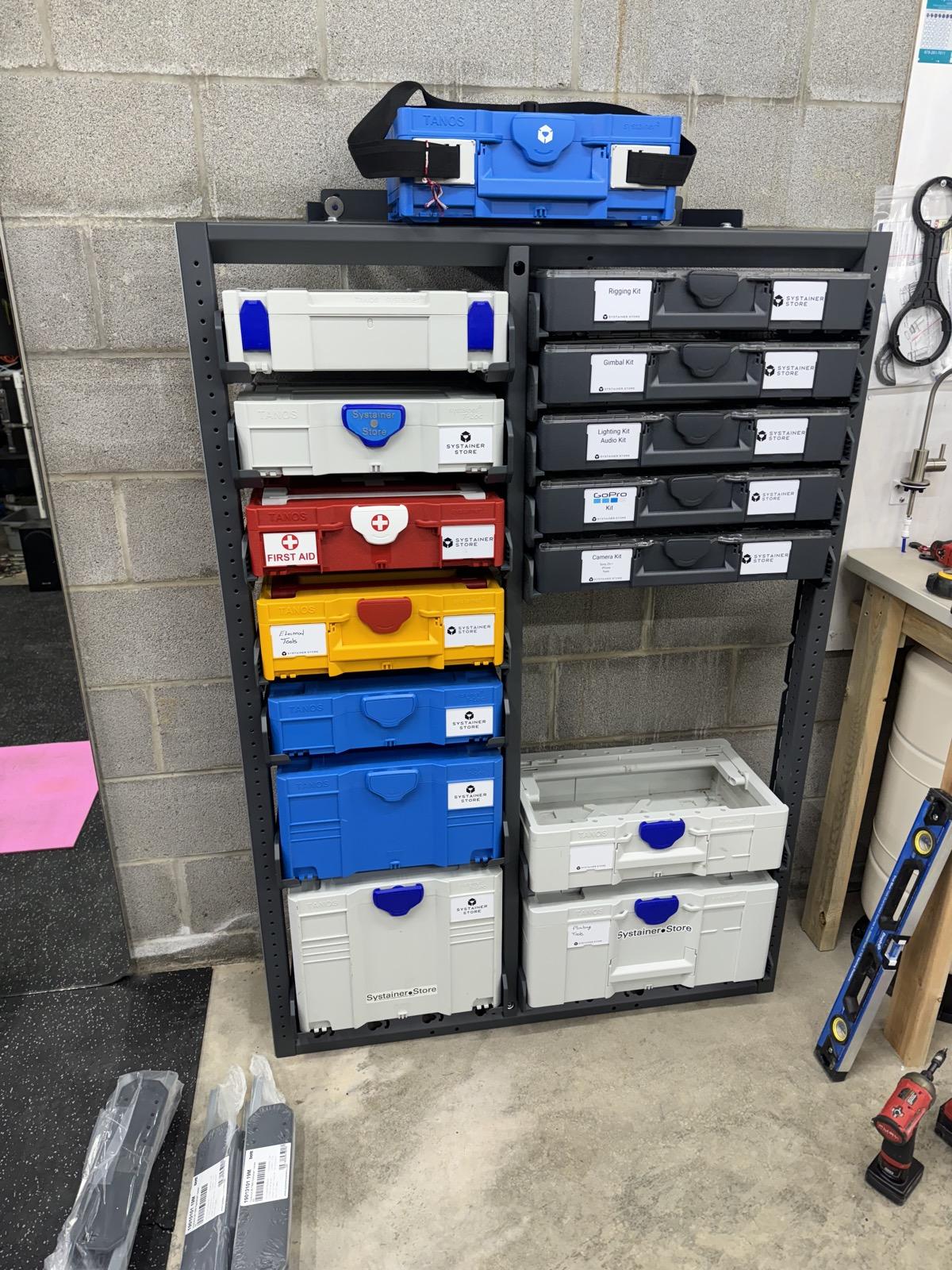

This has changed how I store systainers in my shop. Until now I was utilizing the stacks on carts. Naturally the systainer I always needed was at the bottom. This now allows my more commonly accessed systainers to fit in racks.

This fitout by:

Tim Swieter

Sys Tim

Owner of Systainer Store

Build awesome things, with great people, have fun and make money!

I run Systainer Store, which has been operating since 2018. I’m a business and strategy designer, an entrepreneur and a professional engineer. I’ve built SaaS and IOT businesses as well as rollercoasters, parades and fireworks shows.

This post may contain affiliate links to products from Systainer Store and other vendors. We may earn a commission on qualifying purchases.
